Quality Control

Home » Service » Quality Control

Customized

Spirit Bottle Quality Control Standards

Every Bottle.Every Batch. Three Stages of Verification.

HUIHE Packaging operates a structured, multi-stage quality control system — combining trained manual inspection, automated machine vision, and AQL-based laboratory sampling — to deliver documented conformance on every production order.

250+

Bottles inspected per minute by machine vision
0.2mm

Minimum defect size reliably detecte
AQL 0

Tolerance for critical defect classification
ISO 9001

Certified quality management syste

100% Full Inspection

Manual and automated inspections are performed simultaneously to ensure stable quality and greatly reduce quality risks.

Personnel Inspection

Automatic Inspection

Test Laboratory

1.Personnel Inspection

Each production line we have professional selection and evaluation and quality control personnel, follow the quality inspection standard process, carefully inspect the quality of glass bottles, record detection data, ensure that your glass bottle orders have no quality concerns.

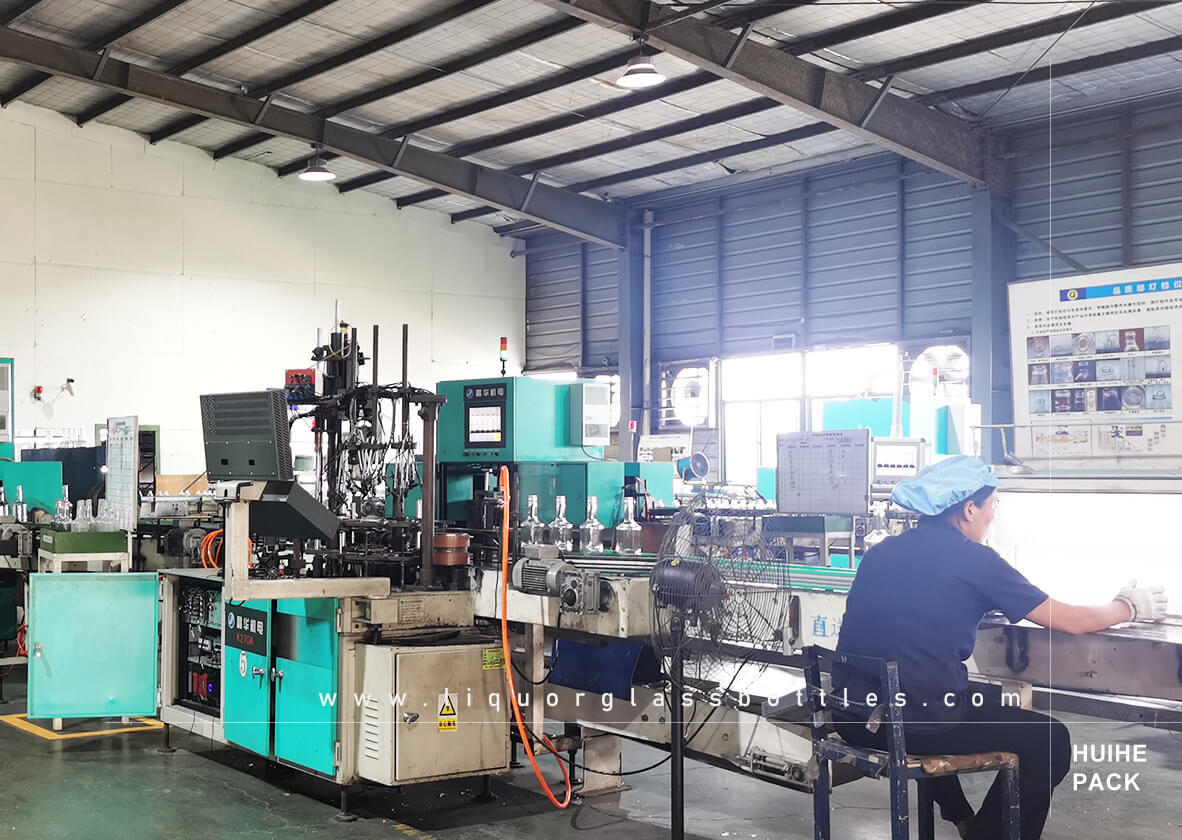

2.Automatic Inspection Equipment

In order to provide more precise inspection, control the production quality, we had introduced automatic inspection equipment such as photographic inspection machines and Infrared bottle mouth inspection machines, and we has laboratory to test the physical and chemical properties of glass containers.

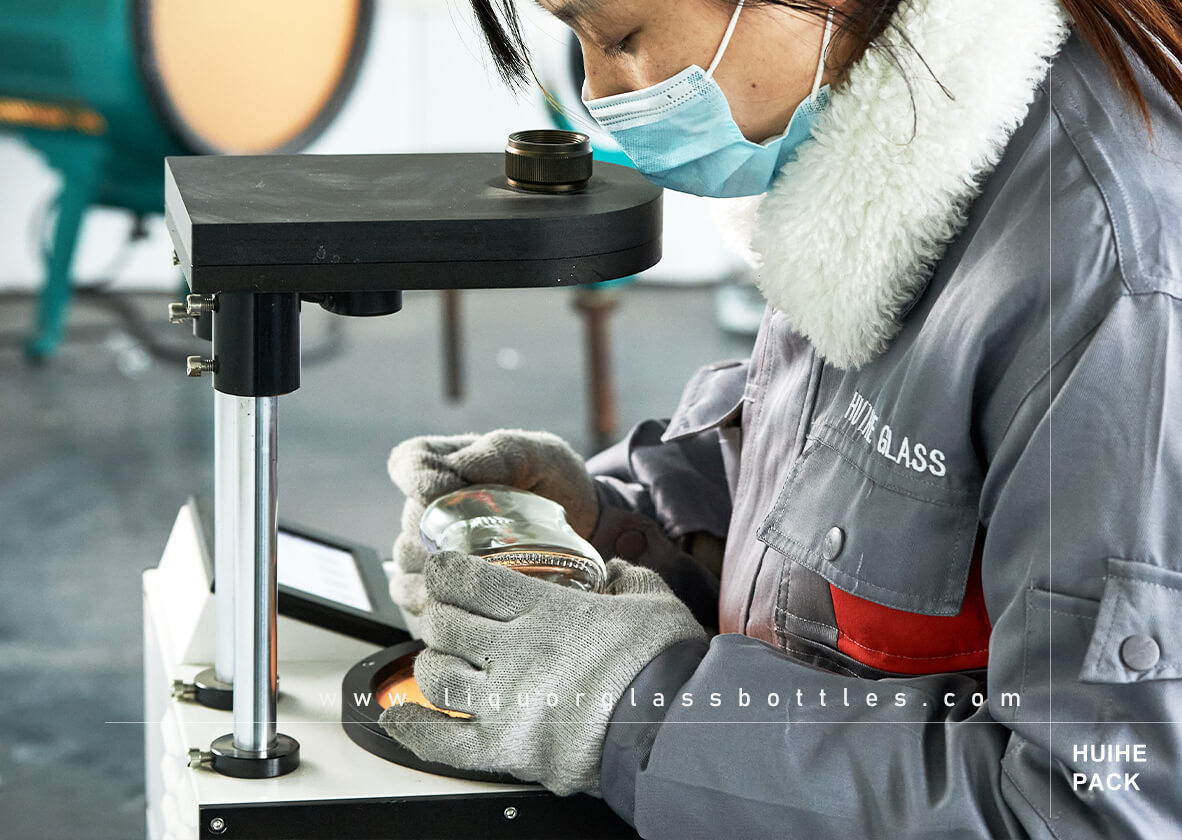

3.Testing Laboratory

The laboratory tests the physical and chemical properties of glass containers. And a spot check of bottle size, thickness, capacity, filling level, thermal shock, stress and etc.

Inspection Focus

We focus on quality management, using advanced equipment and QC online testing to ensure stable glass liquor bottle quality. Our glass bottles resolutely eliminate serious defects such as bottle chipped finish, choked bore, flanged finish, inner contamination or loose glass, sharp seam, impact failure, split, not good thermal shock, pressure below minimum as well as all other important quality control points.

Mouth Crack

Crooked Neck

Bubble

Body Deformation

Uneven Thinckness

Mouth Crack

Crooked Neck

Bubble

Body Deformation

Uneven Thinckness

Our Approach

Quality in glass bottle manufacturing is not the result of a single inspection event at the end of a production run. At HUIHE, quality control is embedded across three distinct stages of every production cycle — from real-time machine vision operating at line speed, through trained manual checkpoint review, to statistical AQL sampling in our laboratory before dispatch.

Each stage targets different defect types and operates at different points in the manufacturing process. Together, they form a system designed to ensure that structural, material, surface, and dimensional non-conformances are identified and removed before any goods leave our facility.

All quality outcomes are documented. Compliance certificates, third-party test reports, AQL inspection records, and batch-level documentation are available to support your procurement and regulatory requirements.

Available Compliance Documentation

ISO 9001

Certified quality management system across all production operations
EU Declaration of Compliance

Regulation 1935/2004 — food contact materials
FDA GMP Records

Manufacturing documentation for US market requirements
REACH SVHC Declaration

Current candidate list substances
— updated 2026
SGS Test Reports

Third-party heavy metal migration testing, available on request
AQL Inspection Reports

Batch-level sampling records, available per order

A Three-Stage Inspection System

Each stage operates independently and covers different defect categories. No single stage is treated as sufficient on its own.

Manual Visual Inspection

Trained operators conduct checkpoint inspections at defined points in the production process. Manual inspection catches systemic or contextual issues that automated systems are not designed to flag — including decoration alignment, finish consistency, and any production anomalies that fall outside machine vision parameters. Inspection protocols are calibrated to production lot and product specification.

- Surface finish
- Decoration quality
- Visual anomalies
- Contextual defects

Machine Vision Inspection

An automated camera inspection system scans every bottle at production line speed — not a sample, but every unit. Multiple high-resolution cameras cover the bottle mouth, body, and base simultaneously. Defective units are automatically ejected from the line within milliseconds of detection. The system operates continuously without the fatigue and variation inherent in manual-only inspection.

- 100% line coverage
- Structural defects
- Dimensional parameters
- Auto-rejection

AQL Laboratory Sampling

Statistical sampling conducted against internationally recognized AQL standards (ISO 2859-1 / ANSI Z1.4) prior to dispatch. Sampling covers dimensional verification, weight consistency, and functional testing. Chemical testing — including heavy metal migration — is conducted via SGS or approved third-party laboratories. Inspection reports and certificates are retained and available per batch on request.

- AQL statistical sampling
- Dimensional verification
- Chemical testing (SGS)
- Documented records

Automated Inspection at Line Speed

Every bottle on the production line passes through the machine vision system. There is no sampling at this stage — the system scans 100% of output in real time.

250+

Bottles inspected per minute

0.2mm

Minimum detectable defect size

19ms

Detection cycle per bottle

24/7

Continuous operation, no fatigue variance

STEP ONE

Bottle Mouth

Cracks and micro-cracks at the sealing surface

Chips and breakage at the rim

Deformation affecting closure fit

Double-finish and malformed neck geometry

Surface contamination and foreign material

View More
STEP TWO

Bottle Body

Seeds (trapped air bubbles) within the glass matrix

Stones — unmelted batch material inclusions

Foreign inclusions and glass contamination

Surface cracks, scratches, and abrasion marks

Body diameter, ovality, and geometric parameters

Excessive internal stress detection

View More
STEP THREE

Bottle Base

Base cracks and structural damage

Seeds and stones in base glass

Surface contamination and residue

Residual liquid inside the bottle

Incorrect bottle type or format (height, profile)

View More

Defect Classification & AQL Standards

AQL (Acceptable Quality Limit) inspection follows ISO 2859-1 / ANSI Z1.4 statistical sampling methodology. Defects are classified into three tiers, each governed by a different tolerance level.

Classification	Definition	Standard AQL Value	Typical Defect Examples
Critical	Defects that create a safety hazard or render the product completely unusable. Non-negotiable regardless of order size or market.	AQL = 0 Zero tolerance — any single instance triggers lot rejection	Glass shards or fragments inside the bottle; through-cracks penetrating the wall; structural collapse
Major	Defects that materially affect product function, commercial acceptance, or regulatory conformance.	AQL 2.5 Tightened to AQL 1.5 or 1.0 by agreement for premium or regulated products	Significant dimensional deviation; sealing-surface defects affecting closure; prominent surface cracks; decoration misalignment beyond tolerance
Minor	Cosmetic imperfections that do not affect product function, safety, or commercial specification compliance.	AQL 4.0 Tightened to AQL 2.5 for premium surface finish requirements	Micro-bubbles below visual threshold; very slight color variation within tolerance band; minor surface marks below the label zone

Defect Reference

Common Glass Bottle Defects — Identified & Controlled

Understanding the defect types that occur in glass bottle manufacturing — and how each is detected — is part of managing supply chain risk. The reference below covers the most common defect categories, their commercial significance, and the inspection methods that catch them.

LEARN MORE

Detection Method Key

Manual Inspection

Most defects are caught by two or more stages. Machine vision provides 100% line-speed coverage; manual and laboratory stages provide contextual and statistical verification.
Manual Inspection
Laboratory Sampling

Category 01 · Structural Integrity Defects
Critical	Through-Crack / Penetrating Crack A crack that penetrates the full thickness of the glass wall. Creates a direct risk of bottle failure under pressure, temperature change, or handling stress. Represents the highest-priority defect classification. - Machine Vision - Manual
Critical	Rim Chip / Breakage Material missing from the bottle mouth or rim. Directly compromises seal integrity and creates a contamination risk. Detected at the bottle mouth inspection station with particular precision. - Machine Vision - Manual
Major	Surface Crack / Crizzle A crack confined to the glass surface that has not penetrated the full wall. May propagate under stress and typically disqualifies the bottle from commercial use at major defect severity. - Machine Vision - Manual

Category 02 · Material Defects
Major	Stones (Unmelted Inclusions) Solid particles of unmelted raw batch material or refractory material embedded within the glass matrix. Can create stress concentration points that lead to delayed fracture. Classified at major or critical depending on size and location. - Machine Vision - Laboratory
Major	Seeds / Bubbles Trapped air or gas pockets within the glass body, formed during the melting or forming process. Large or clustered bubbles are classified as major defects due to structural weakening; very small isolated bubbles may be classified minor depending on location and density. - Machine Vision - Manual
Major	Foreign Inclusions External contamination — metallic particles, refractory fragments, or other foreign matter — embedded in the glass during production. Represents a food contact safety concern and triggers lot-level investigation. - Machine Vision - Laboratory

Category 03 · Surface & Appearance Defects
Major	Scratches & Abrasion Surface score marks from contact with handling equipment, conveyor systems, or adjacent bottles. Classified based on location (label zone vs. visible panel), depth, and extent. Premium spirits bottles typically specify tighter surface scratch tolerances. - Machine Vision - Manual
Major	Contamination & Oil Marks Surface soiling from production lubricants, forming oils, or external contamination. Oil marks that affect decoration adhesion or final appearance are classified at major severity. Addressed through production process control and surface cleaning protocols. - Machine Vision - Manual
Minor	Micro-Bubbles / Slight Color Variation Very small sub-surface bubbles below visual threshold, or marginal color variation within the specified tolerance band. Do not affect structural integrity or commercial usability. Tracked statistically to detect process drift before major defects develop. - Manual - Laboratory

Category 04 · Dimensional & Functional Defects
Major	Dimension Deviation / Ovality Height, diameter, or wall thickness measurements falling outside the agreed specification tolerance. Ovality — a non-circular cross-section — affects label application machinery, capping equipment compatibility, and shelf presentation uniformity. Verified dimensionally in laboratory sampling. - Machine Vision - Laboratory
Major	Double Finish / Neck Deformation Malformation of the bottle neck or finish geometry during forming. A double-finish creates a secondary ridge that prevents correct closure seating. Neck deformation causes variability in capping torque and seal integrity. Detected at the mouth inspection station. - Machine Vision - Manual
Major	Excessive Internal Stress Residual thermal stress in the glass from insufficient or uneven annealing. Cannot be detected visually but can cause spontaneous fracture during use, transport, or temperature change. Verified by polariscope testing in the laboratory sampling stage before dispatch. - Machine Vision - Laboratory

Quality Records Available on Request

Every production order generates a documentation trail. The certificates and test records below are available to support your internal QC review, supplier onboarding process, or regulatory submission requirements.

Documents are provided in English. Specific formats or additional declarations required by your quality management system or market authority can be discussed at the order stage.

ISO 9001 Certificate

Quality management system certification covering all production and inspection operations.
EU Declaration of Compliance

Regulation 1935/2004 food contact materials declaration for glass bottles supplied to EU/UK markets.
FDA GMP Compliance Records

Good Manufacturing Practice documentation to support US market regulatory requirements.
REACH SVHC Declaration

Substance of Very High Concern declaration, current candidate list (ECHA). Updated to reflect the 2026 candidate list.
SGS Heavy Metal Migration Test Report

Third-party laboratory analysis for lead and cadmium migration from glass surfaces. Available on request or as part of new supplier qualification packages.
AQL Inspection Report (Per Batch)

Statistical sampling records, defect classification data, and pass/fail outcomes for each production batch, available per order.

QC Questions Before You Place an Order?

HUIHE PACKAGING

Whether you need to review our compliance documentation, discuss inspection standards for a specific product, or understand how our QC process maps to your supplier qualification requirements — send us the details and we will respond with the information you need.

Factory audit arrangements are available for qualified prospects — contact us to discuss

Tell us your product type and target market — we confirm which compliance documents apply

Specify any AQL requirements or inspection standards your QC team requires — we confirm our default framework or propose adjustments

Receive the relevant certificates and test reports for your supplier qualification process

WE WILL GET BACK TO YOU QUICKLY AND PROVIDE YOU WITH ALL THE INFORMATION YOU NEED.
