Introduction

In the glass packaging industry, a technical drawing is more than just a sketch; it is a legally binding contract between the distillery and the manufacturer. Whether you are launching a craft moonshine or a premium vodka, misinterpreting a few millimeters can lead to leaking caps or labeling disasters.

In this guide, we use a 750ml Moonshine Glass Jug blueprint to explain how to read these documents and why they are critical for your molding, filling, and packaging stages.

Terms & Abbreviations

Understanding Key Dimensions, Tolerances, and Specifications for Your Custom Bottle.

The Anatomy of a Spirit Bottle (Key Dimensions)

When you look at a drawing, you will see several letter-coded dimensions near the neck. These are crucial for your closure fit:

T (Thread Diameter):	The outside diameter of the continuous thread.
E (Outside Neck Diameter):	The diameter of the neck excluding the thread.
I (Inner Diameter):	The most critical dimension for cork or stopper fit.
H (Total Height):	From the base to the very top of the finish.

Understanding Capacity and Fill Point

A professional drawing doesn't just show the size; it shows the volume

Nominal Capacity:	The standard volume (e.g., 750ml).
Brimful Capacity:	The total volume if filled to the very top.
Fill Point:	The distance from the top of the finish to the liquid level at nominal capacity.

Why Tolerances Matter

Glass is a natural material molded at high temperatures. Therefore, no bottle is "perfect."
(1) Capacity Tolerance: Typically expressed as ±5ml or similar.
(2) Weight Tolerance: The variation in the glass mass itself. Understanding these prevents surprises during the quality control stage.
Professional Pro-Tip for Distillers
Always check the Clear Label Area. On a technical drawing, this indicates the flat surface where your label can be applied without wrinkles or bubbles.

Analysis Based on Real Drawings

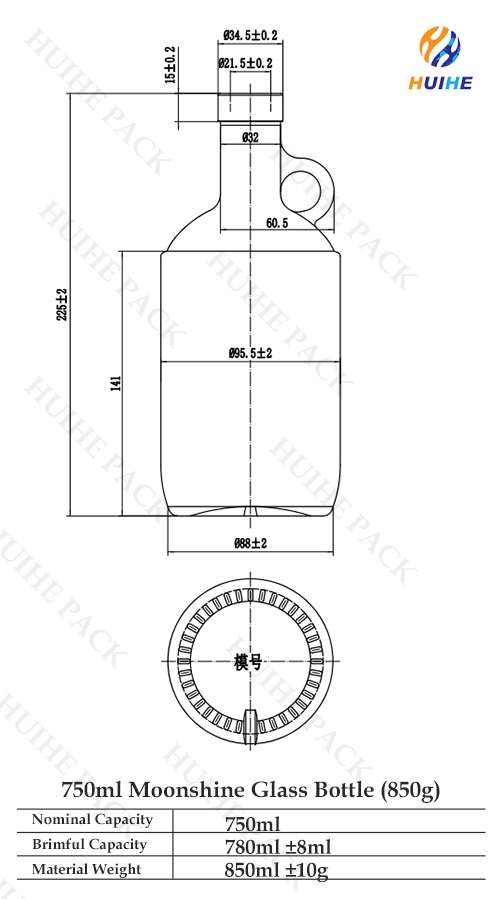

Glass bottle technical drawing

1. Key Dimensions: The "DNA" of Your Bottle

The numbers on a drawing define the bottle's physical limits.

Total Height (225 ± 2 mm): Essential for ensuring the bottle fits into your filling monoblock and retail shelving.
Body Diameter (Φ95.5 ± 2 mm): This dictates the size of your outer shipping cartons and the curvature of your labels.
The Handle Clearance (60.5 mm): For jugs, this specific dimension ensures that the filling heads or labeling arms have enough "room to breathe" without striking the glass handle.

2. The "Neck Finish": The Science of Sealing

The top of the bottle is called the "finish." This is the most critical area for preventing leaks.

Outer Diameter (Φ34.5 ± 0.2 mm): This determines the size of the cap or heat-shrink sleeve.
Inner Diameter (Φ 21.5 ± 0.2 mm): This is the most vital number for cork or T-top stopper fit.
Finish Height (15 ± 0.2 mm): Ensures the cap seats perfectly without leaving a gap.
Verticality & Tolerance: Note the ± 0.2 mm. Glass is a natural material that expands and contracts;understanding these tolerances helps you choose a closure with the right flexibility.

3. Capacity, Fill Point, and Headspace

Look at the data table (bottom right of the drawing):

Nominal Capacity (750 ml): The volume you legally sell to the consumer.
Brimful Capacity (780 ± 8 ml): The total volume to the very top.
Material Weight (850 ±10 g): A heavier bottle (like this 850g jug) often signals premium quality and higher durability against thermal shock.
Why it matters for Filling: The 30ml difference is the "Headspace." Without enough headspace, liquid expansion during shipping (due to temperature changes) could push the cork out or even break the bottle.

4. The Bottom View: Mold Marks and Stability

The circular drawing at the bottom shows the base.

Knurling (The dotted ring): These small ridges prevent the bottle from spinning on the conveyor belt and reduce glass-to-glass friction.
Mold Number : This allows the factory to track quality. If one bottle has a defect, we can identify exactly which mold cavity produced it.

“Need help reviewing your drawing? Send it to our engineers for a free audit.”

From Blueprint to Production: Why This Matters

1. Diversifying Bottle Shapes: Key Focus Areas

While our example features a Moonshine Jug, different spirits bottle shapes have unique technical priorities on a blueprint:

Round Bottles: The focus is on Cylindricity. A perfect cylindrical body ensures that automatic labeling machines apply labels smoothly without trapped air bubbles.
Square/Rectangular Bottles: The priority is the Corner Radius. If the radius is too small, it can lead to uneven glass distribution, making the corners fragile and prone to breakage.
Fancy/Irregular Shapes: These designs must clearly indicate the Center of Gravity. This is critical to prevent the bottles from tipping over on high-speed filling lines.

2. Blueprint to Mold: The Foundation of Customization

Design Confirmation: The technical drawing is the sole authority for mold making. Once the drawing is signed off, the molds are precision-carved according to these exact millimeter specifications.
2.5D to 3D Rendering: To help spirit brands and distilleries visualize the final product, we can provide 3D renderings based on the 2D blueprint. This allows you to evaluate the aesthetic impact before investing in physical molds.

3. Downstream Compatibility: Avoiding Costly Errors

Understanding the drawing ensures your bottle integrates perfectly with the rest of your production chain:

Filling (The Fill Point): If the fill point is inaccurately marked on the drawing, it can lead to "overfilling" (overflow waste) or "underfilling" (appearing less than full), both of which harm brand reputation.
Packaging (The Diameter Tolerance): If a bottle's actual diameter is on the upper limit of the tolerance, it may not fit into your pre-ordered custom cartons. Always verify these dimensions with your packaging partner.
Sealing (The Internal Diameter): The dimension marked "I" is the gold standard for choosing the right cork or stopper. We strongly recommend sending cork samples for sealing tests immediately after the drawing is finalized.

Pro-Tips for Spirits Brands

What to watch out for when signing off a technical drawing:

Label Panel Flatness: Ensure the drawing specifies a flat surface area that meets your labeling machine's requirements. Any slight curvature in the labeling zone can cause air bubbles or misaligned labels during high-speed application.
Headspace (Expansion Room): Always verify that the brimful capacity provides sufficient headspace above the nominal capacity. This space is vital to allow for liquid expansion during transit, especially when containers are exposed to varying temperatures.
Bottom Push-up (The Punt): For premium whiskey or high-end spirits, check the depth of the bottom push-up. A deeper punt not only adds structural strength but also enhances the bottle's "shelf presence" and aesthetic value, meeting the expectations of a luxury brand.

Conclusion

Don't guess—verify. A professional glass suppliershould always provide a detailed 2D drawing and, ideally, a 3D rendering before you invest in mass production.
