Glass Bottle Mold Tooling Cost: One-Time Fee vs Amortization, Ownership Terms, and What Drives the Number

Mold tooling cost is one of the least transparent line items in a glass bottle quotation — quoted differently by almost every supplier, structured in ways that make direct comparison difficult, and carrying commercial and legal implications (particularly around ownership) that don't surface until a problem occurs. Buyers who treat the mold fee as just a number to minimize often discover later that they've unknowingly surrendered control of a tooling asset they've already paid for, or accepted a payment structure that costs more over their real order volume than the "cheaper" alternative they turned down.

This guide covers the financial mechanics of both common mold fee structures, the cost drivers behind the tooling number itself, and the contract terms that determine whether you actually own what you've paid for — written for procurement and finance teams who need to make this decision with full information, not just a headline quote comparison.

Quick Answers: Glass Bottle Mold Tooling Cost

What is a glass bottle mold tooling fee?

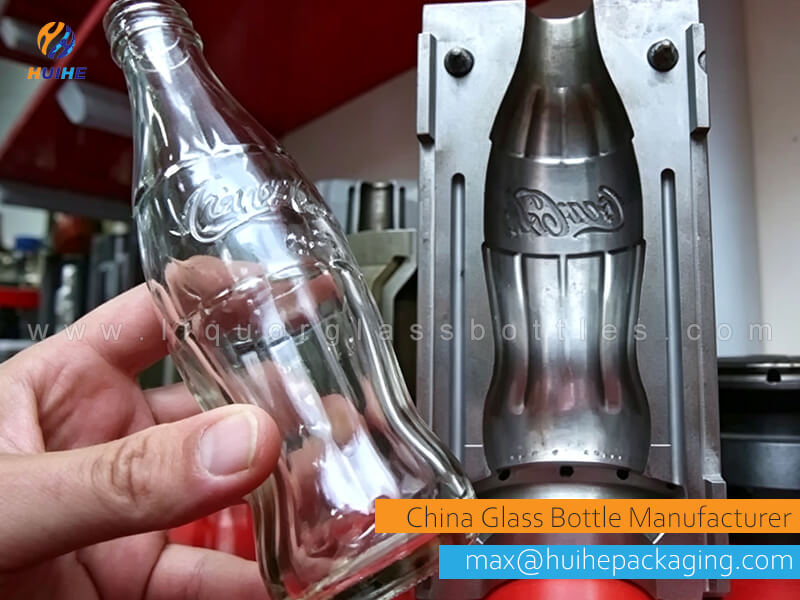

A mold tooling fee is the one-time or amortized cost of designing, engineering, and machining the steel molds used to form a specific glass bottle shape. It covers the CNC machining of blank molds and blow molds, any CAD engineering work done by the supplier, and the initial trial runs needed to validate the mold before production. It is separate from the per-unit glass price, though some suppliers fold it into a higher unit price rather than quoting it as a standalone line item.

What typically drives the size of a mold tooling fee?

The four main drivers are: the number of mold cavities (a two-cavity mold producing two bottles per machine cycle costs roughly 1.5–1.8× the tooling of a single-cavity equivalent, not 2×, because some components are shared); the complexity of the bottle geometry (relief embossing, asymmetric shapes, and undercut features all add machining time); the grade of steel used (standard P20 vs harder H13 or imported European steel); and whether CAD design is included in the mold fee or provided by the buyer.

What are the two ways mold cost is typically structured in a quotation?

Either as a separate one-time tooling fee paid upfront (or on a milestone basis), with the per-unit glass price reflecting only ongoing production cost; or as an amortized cost built into a slightly higher per-unit price over an agreed minimum production volume, with no explicit upfront tooling line item. Both approaches are common; neither is inherently better — the right choice depends on your order volume, cash flow position, and how long you expect to produce this bottle.

Who typically owns the mold once it's paid for?

This depends entirely on the contract terms, not on which party paid. In the absence of explicit written contract language stating the buyer owns the mold, suppliers in China (and most other manufacturing countries) typically treat molds as factory property. Mold ownership must be stated explicitly in writing — "buyer has paid the tooling fee" does not automatically transfer ownership without a specific contractual clause to that effect.

What Drives the Mold Tooling Cost

The mold tooling fee is not an arbitrary number — it reflects real cost inputs that vary predictably with the specification. Understanding what drives the number helps you evaluate whether a quote is reasonable and where the scope can be adjusted if cost reduction is needed.

As a rough reference range for China-based manufacturing (costs vary by supplier and scope): a minor modification to an existing stock mold (adding an embossed element or logo) typically runs $1,500–$4,000; a semi-custom mold using an existing body with a custom neck or base runs $4,000–$10,000; a fully proprietary single-cavity mold runs $12,000–$28,000; and complex sculptural or multi-cavity designs can run $25,000–$50,000 or more. These ranges are covered in more detail alongside the project timeline in our guide on limited edition spirits packaging from mold to delivery.

The Two Payment Models: One-Time Fee vs Amortized

Model A: Separate One-Time Tooling Fee

The supplier quotes a discrete tooling fee (e.g., $8,000) paid at project initiation or on a milestone basis (e.g., 50% at design approval, 50% at first sample acceptance), with the per-unit glass price reflecting only the ongoing production cost of making the bottle — raw materials, forming, energy, and margin.

This model is transparent: you see exactly what the tooling costs, separate from what the glass costs. It's also financially straightforward for accounting purposes — the tooling fee is a capital expenditure, the per-unit price is a cost of goods. The downside is the upfront cash requirement before any production has started or any product has been sold.

Model B: Amortized Into Unit Price

The supplier quotes no upfront tooling fee but a slightly higher per-unit price, with the understanding that a portion of each unit price covers the mold cost recovery. The amortization is typically over an agreed minimum volume (e.g., the mold cost is recovered over the first 20,000 units), after which the unit price may drop to reflect the true production-only cost.

This model reduces upfront cash commitment and is easier to sell internally when a capital expenditure approval process is involved. The cost is less visible — the mold cost is embedded in a higher unit price rather than broken out — which makes it harder to evaluate independently. It also creates an implicit relationship tie: if you switch suppliers before the amortization volume is complete, the mold cost recovery is incomplete, which some suppliers use as a deterrent to switching.

The Math: Which Model Costs You More?

Using a concrete example: suppose the standalone mold cost is $8,000, and the true production-only unit price is $0.42. You plan to order 10,000 units per year for three years (30,000 units total).

At the planned volume, both models cost exactly the same — the amortization model is simply Model A with the tooling cost converted to a per-unit spread. The difference emerges in two scenarios:

• If you order more than the amortization volume, Model A is cheaper: you've already paid the tooling once and continue at the lower production-only unit price. In the example above, every unit beyond 20,000 ordered under Model B costs $0.42, same as Model A — but under Model B, you only reach that lower price after 20,000 units have been produced. The break-even is at the amortization threshold.

• If you order less than expected, Model A may leave you with a sunk tooling cost on a lower-than-planned volume. Model B means you've only paid mold cost proportional to actual units produced — though at a higher per-unit rate than the standalone production cost.

The conclusion: choose Model A if you're confident in your volume and want the lowest long-term unit cost; choose Model B if your volume projections are uncertain and you want to limit the downside of a minimum-volume shortfall.

Single-Cavity vs Multi-Cavity Molds

A multi-cavity mold produces two or more bottles simultaneously in each machine cycle, increasing output per unit of production time. The mold costs more upfront but reduces per-unit production cost at volume.

For brands ordering at lower volumes or commissioning a mold for the first time, a single-cavity mold is usually the lower-risk starting point — you validate the design at lower tooling cost, and can commission a second cavity or a multi-cavity replacement mold once volume justifies it.

Mold Lifespan, Wear, and Maintenance Costs

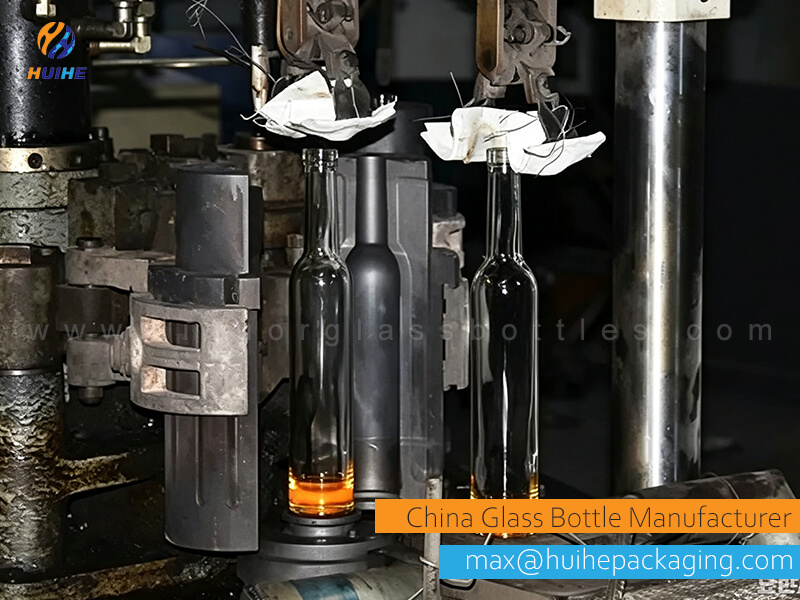

A glass bottle mold is not a permanent asset. The repeated heating and cooling cycles of glass forming, combined with the mechanical contact between glass and mold steel, cause gradual wear over time — surface degradation, dimensional drift, and eventually quality inconsistencies that require refurbishment or mold replacement.

Expected mold lifespan in production cycles varies by steel grade and maintenance regime:

• Standard P20 domestic steel: typically 400,000–600,000 production cycles before refurbishment is needed

• H13 or premium imported steel: typically 800,000–1,200,000 cycles before refurbishment

At a production rate of 10,000 units per order run, even a modest-lifespan mold will serve many years of typical B2B order volumes. Mold wear becomes a material commercial consideration only for brands at high sustained volume (100,000+ units per year), where the refurbishment or replacement cost needs to be planned into the long-term unit economics.

Maintenance costs — periodic polishing, minor cavity repair, release coating reapplication — are typically the supplier's responsibility during normal production but become a contract negotiation point for long-running programs. Clarify upfront who pays for scheduled maintenance versus damage caused by production incidents.

Mold Ownership: The Terms That Actually Matter

This is the most commercially consequential section of this guide, and the one most frequently glossed over by buyers focused on the tooling fee number itself.

In Chinese manufacturing practice, a mold physically located at a supplier's factory is presumed to be the supplier's property unless an explicit written agreement states otherwise. Payment of a tooling fee does not automatically transfer ownership. A supplier who has not signed a clear ownership clause is not necessarily acting in bad faith — they may simply be operating under the standard assumption that the mold is a factory asset unless explicitly agreed otherwise.

The practical consequences of not having clear ownership terms:

• If you want to move production to a different supplier, the mold may not be transferable without the original supplier's agreement

• If the supplier goes out of business, the mold may be tied up in insolvency proceedings as a factory asset

• If there is a commercial dispute, the supplier may use mold access as leverage

The following terms should appear explicitly in any mold tooling agreement, ideally as a standalone clause rather than buried in general terms and conditions. Visiting the factory's mold room as part of your audit process — as described in our factory audit checklist — is also the right time to see mold storage practices and ask directly how ownership is handled for buyer-commissioned tooling.

A supplier who resists including these terms — rather than negotiating specific language — is the more significant signal than one who negotiates the precise wording. Resistance to ownership clarity in principle is a commercial red flag.

Red Flags in Mold Cost Proposals

Mold Investment Checklist Before You Sign

FAQ

Can I take my mold to a different factory if I'm unhappy with my current supplier?

Only if your contract explicitly grants you the right to transfer the mold. Without that clause, the mold is physically at the supplier's factory and effectively under their control, regardless of who paid for it. This is why the ownership and transfer terms in the mold agreement matter more than the tooling fee itself for long-term commercial risk. Brands that have already paid a tooling fee without a transfer clause face a difficult renegotiation to recover that flexibility.

Is it worth paying for imported steel vs domestic Chinese steel for a mold?

For most standard production volumes, domestic Chinese P20 steel is adequate — the additional cost of imported H13 or European tool steel only begins to pay back measurably above roughly 500,000 production cycles. For brands ordering 10,000–30,000 units per year, a standard domestic steel mold will typically outlast the commercial life of the product variant without needing replacement. Where premium steel is worth specifying is for brands with sustained high volumes, or for molds running unusual materials (very heavy glass, high-relief embossing) that impose above-average wear on the cavity surface.

What happens when a mold wears out — replace or refurbish?

Refurbishment (re-machining and polishing the cavity surface) is usually the first step, typically recovering 70–80% of the original mold lifespan at 20–35% of a new mold cost. Full replacement is warranted when the cavity geometry has drifted beyond the tolerance range that refurbishment can restore, or when design changes are being made to the bottle at the same time. The decision point is dimensional tolerance — a supplier running regular dimensional checks (as described in our quality management guide) should be tracking gradual cavity wear as a leading indicator, not discovering it through customer complaints.

How should I account for mold cost in my unit economics model?

Treat the mold as a capital asset amortized over its expected useful production life. At your planned annual volume and the mold's estimated lifespan in cycles, calculate the effective per-unit mold cost, add it to the production unit price, and compare that total effective cost across supplier options — this gives a truer comparison than unit price alone. Our quotation price breakdown guide walks through this normalization process in the context of a full quotation comparison.

Get a Transparent Mold Cost Breakdown for Your Project

We quote mold tooling the way this guide describes it: cavity count and steel grade stated, payment model options presented side by side with the break-even math, and ownership terms in writing before work begins — not negotiated retrospectively after you've already paid a deposit.

• ✓ Mold scope breakdown provided before quotation is issued (cavity count, steel grade, CAD inclusion stated)

• ✓ Both payment model options quoted where applicable, with break-even volume calculation

• ✓ Buyer ownership clause standard in all mold agreements, with transfer right included

• ✓ Mold exclusivity confirmation — your shape is not used for any other client's production

• ✓ Mold storage documentation provided on request for your internal asset records
