Every spirits bottle specification document lists a neck finish. It is typically a short code — Bar Top, ROPP 30mm, BVS 30H60, GPI 33-400 — that carries significant downstream consequences: it determines which closure system fits, which capping equipment your filling line requires, and what the opening experience communicates to the consumer.
Neck finish errors are among the most operationally disruptive mistakes in spirits bottle sourcing. A bottle produced with the wrong neck finish cannot accept your closure; there is no field fix. The only resolution is a new production run. This guide provides a complete reference for every neck finish type used in commercial spirits bottle production — with dimensions, closure compatibility, and selection guidance for each.
Table of Contents
Toggle
Quick Answers
What is a Bar Top neck finish?
A smooth, unthreaded bottle neck designed for cork or stopper insertion. The critical dimension is the bore diameter — the inside diameter of the bottle mouth — which must be matched to the cork or stopper diameter. Typical bore range: 18–21.5mm. The dominant finish for premium and super-premium spirits globally.
What is the difference between ROPP 28mm and ROPP 30mm?
Both accept aluminum ROPP screw caps, but the thread diameter and cap size differ. ROPP 28mm is most common in smaller formats and value-tier spirits. ROPP 30mm is standard for premium 700ml and 750ml spirits bottles. The two are not interchangeable — cap and bottle thread must match.
What is BVS 30H60?
A standardized European thread profile (30mm diameter, H60 geometry) used widely across EU glass manufacturers. Compatible with ROPP aluminum screw caps. Offers broad supplier interchangeability because the profile is standardized — a BVS 30H60 bottle from one factory accepts the same cap as a BVS 30H60 bottle from another.
Can the neck finish be changed after the mold is made?
No. The neck finish is fixed in the bottle mold. Changing it requires a new mold or mold modification. Specify the neck finish before ordering any bottle.
What a Neck Finish Is and Why It Cannot Be Changed
The neck finish describes the geometry of the bottle's mouth — the shape, diameter, thread profile (if any), and surface characteristics of the zone where the closure engages the bottle. It is formed by the bottle mold's neck ring and is an integral part of the bottle's glass structure.
Because the neck finish is part of the mold tooling, it is fixed for the production life of that mold. Unlike label design, glass color, or even some decoration elements, the neck finish cannot be modified after bottles are produced. A bottle with a Bar Top neck cannot retroactively be fitted with a screw cap thread; a bottle with an ROPP thread cannot be converted to Bar Top.
The practical consequence: neck finish specification is a commitment made at bottle ordering, not at filling. It must be confirmed against your intended closure before the purchase order is placed. For a full overview of how neck finish fits into the bottle sourcing process, see our guide to sourcing custom spirits glass bottles from China.
Bar Top
Bar Top is the generic name for a smooth, unthreaded bottle neck profile designed for insertion of a cork or decorative stopper. The name derives from the closure style — a cork with a flat or decorative top piece (the "bar top") that sits above the bottle neck and provides the consumer with a grip for extraction.
Parameter
Specification
Thread profile
None — smooth bore
Bore diameter range
18.0mm–21.5mm (varies by mold — must be specified and confirmed)
Bar Top is the most widely specified neck finish in premium spirits globally. It is defined by what it does not have — no thread — and by the bore diameter, which is not standardized across manufacturers. Two Bar Top bottles from different factories may have bore diameters that differ by 0.5–1.5mm, which is enough to cause cork fit failure. This is the single most common sourcing error with Bar Top bottles, and the reason bore diameter confirmation on physical samples is mandatory before bulk closure orders are placed.
See the dedicated section on bore diameter specification below for full detail.

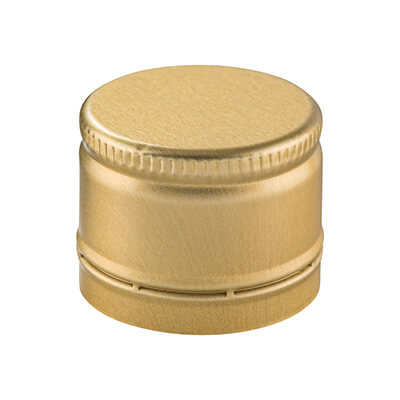

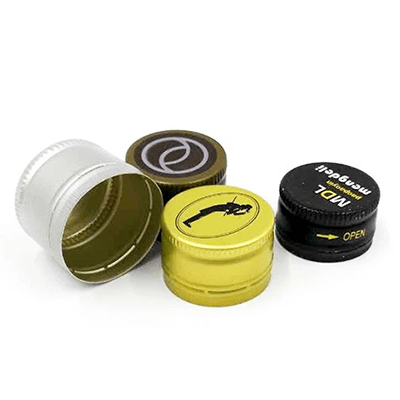

ROPP 28mm
Parameter
Specification
Cap outer diameter
28mm
Thread profile
Proprietary per manufacturer — confirm thread profile compatibility between bottle and cap suppliers
Compatible closures
28mm aluminum ROPP screw cap
Not compatible with
30mm ROPP caps, BVS caps, Bar Top corks, crown caps
ROPP 28mm is the smaller of the two mainstream ROPP formats. It is practical for formats where a compact neck profile is needed and where the slightly smaller cap is not a brand disadvantage — value-tier spirits, convenience formats, and travel retail. For a 700ml/750ml standard retail spirits bottle, 28mm reads as under-sized relative to category expectation; 30mm is more appropriate at that format.

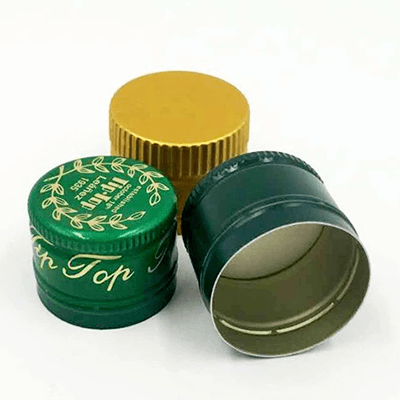

ROPP 28mm for spirits bottle

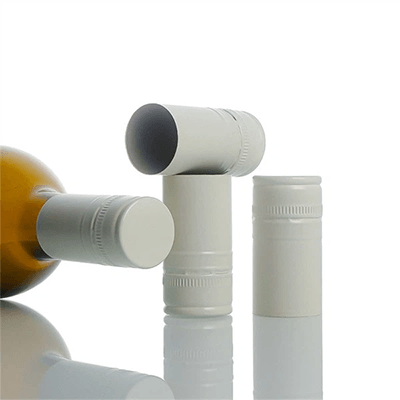

ROPP 30mm
Parameter
Specification
Cap outer diameter
30mm
Thread profile
Varies by manufacturer — BVS 30H60 is the standardized European equivalent (see below)
700ml/750ml standard retail spirits; everyday-tier Scotch, blended whisky, rum, vodka
ROPP 30mm is the standard screw cap neck finish for most non-premium spirits at the full-size 700ml/750ml format. A 30mm aluminum cap on a 700ml spirits bottle reads as functional and appropriate — it does not communicate premium, but it does not undermine standard-tier positioning either. For spirits aiming at premium or above, Bar Top with cork is the stronger choice.

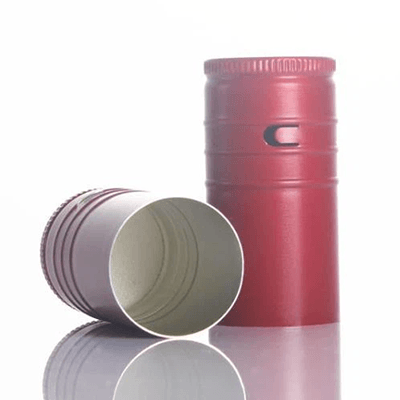

BVS 30H60
Parameter
Specification
Thread designation
BVS 30H60 (standardized European profile)
Thread diameter
30mm
Thread geometry
H60 profile — defined pitch, depth, and flank angle standardized across European glass industry
Interchangeable across BVS-certified manufacturers — a cap sourced from one supplier fits a bottle from another BVS-certified factory
Capping equipment required
ROPP capper (30mm, BVS-compatible tooling)
Brand tier
Standard to premium
Most common on
European spirits production; premium still water; wine; all categories where screw cap is used
Why BVS standardization matters
The BVS (Bague à Vis Standard) designation was established by the European glass and closure industry to create a common thread standard. The practical benefit for buyers: a bottle specified as BVS 30H60 from a Chinese manufacturer can use the same ROPP cap as a BVS 30H60 bottle from a European manufacturer. This interchangeability reduces supply chain risk — if you switch bottle suppliers, your closure tooling and cap stock remain valid provided both suppliers comply with the BVS standard. Always confirm BVS compliance explicitly; not all factories describing their finish as "30mm ROPP" are producing to the standardized BVS profile.

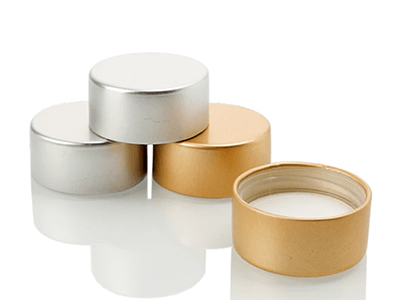

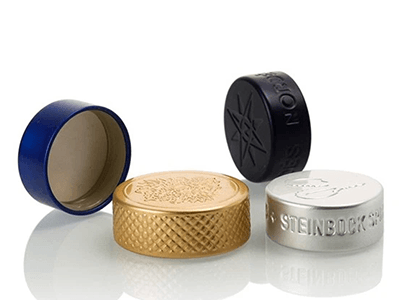

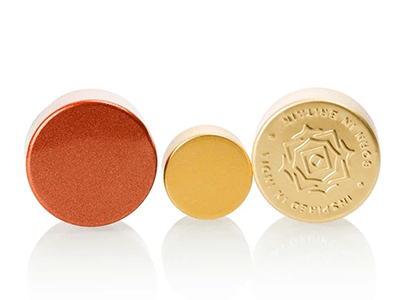

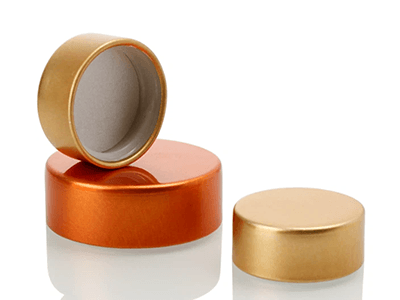

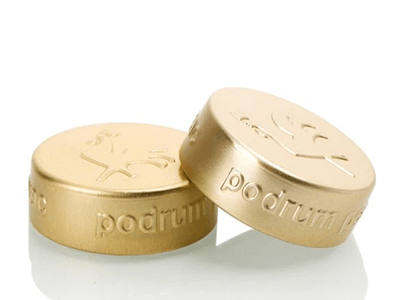

GPI / Continuous Thread Finishes
GPI (Glass Packaging Institute) thread finishes are the North American standard designation system for glass container neck profiles. They use a numerical code system (e.g., GPI 28-400, GPI 33-400) where the first number is the nominal thread diameter in millimeters and the second number is the thread series identifier.
GPI Designation
Thread Diameter
Common Application
Compatible Closure
GPI 28-400
28mm
Value spirits, cordials, liqueurs
Plastic continuous thread (CT) screw cap
GPI 33-400
33mm
Standard US spirits at value tier
Plastic CT screw cap
GPI 38-400
38mm
Wide-mouth formats, liqueurs
Plastic CT screw cap
GPI continuous thread finishes use plastic screw caps rather than aluminum ROPP caps, and are generally associated with value-tier spirits in North American markets. At the standard-to-premium tier for which most craft distilleries and international spirits brands are specifying, GPI finishes are rarely the right choice. They are included here for completeness — and because some buyers encounter GPI specifications on stock bottles sourced from US-market manufacturers and need to understand the distinction from ROPP and BVS profiles.
Custom Neck Finishes
Custom neck finishes — proprietary thread or bore profiles designed specifically for a brand's unique closure system — are used almost exclusively at the ultra-premium and luxury tier. A brand commissioning a bespoke decorative stopper that does not correspond to any standard neck profile will require a custom neck finish on the bottle mold.
Custom neck finishes require: a new bottle mold incorporating the custom profile; a matching custom closure engineered to the same profile; and thorough fit testing on physical samples before mass production of either component. The development timeline for a fully custom closure system (bottle neck + bespoke stopper) is typically 3–5 months from design to approved sample. For the full custom bottle development process, see our guide to sourcing custom spirits glass bottles.
Full Comparison Table
Neck Finish
Thread
Bore / Diameter
Compatible Closure
Brand Tier
Standardized?
Bar Top
None (smooth bore)
18–21.5mm bore (varies)
Natural cork, synthetic cork, T-bar stopper
Premium–ultra-premium
No — bore varies by mold
ROPP 28mm
Yes
28mm cap diameter
28mm aluminum ROPP cap
Value–standard
Partially
ROPP 30mm
Yes
30mm cap diameter
30mm aluminum ROPP cap
Standard–premium entry
Partially
BVS 30H60
Yes (standardized)
30mm, H60 profile
BVS-spec ROPP cap
Standard–premium
Yes — European standard
GPI 28-400
Yes (CT)
28mm
28mm plastic CT cap
Value
Yes — North American
GPI 33-400
Yes (CT)
33mm
33mm plastic CT cap
Value
Yes — North American
Custom
Varies
Brand-specific
Brand-specific bespoke closure
Ultra-premium–luxury
No
Bar Top Bore Diameter: The Specification Most Buyers Miss
Bar Top is described in supplier catalogs simply as "Bar Top" — with no further dimensional qualification. This is the source of the most common and most disruptive neck finish error in premium spirits packaging.
Within the Bar Top category, bore diameter varies. A bottle from Manufacturer A may have a 19.0mm bore; the same nominal "Bar Top" bottle from Manufacturer B may have a 20.5mm bore. A cork sized for 19.0mm will be loose in a 20.5mm bottle (leakage risk). A cork sized for 20.5mm will not insert into a 19.0mm bottle (production stoppage).
How to manage bore diameter correctly
Request the bore diameter specification from your bottle supplier. Ask specifically for the inside diameter at 10–15mm below the lip, measured on production samples. This should be in the bottle's dimensional drawing.
Share the bore diameter with your cork or stopper supplier. Cork suppliers size corks to the bore — they need the actual measured bore diameter, not a nominal "Bar Top" designation.
Test fit on physical bottle samples before placing any bulk cork order. Insert and extract test corks on five to ten physical bottles. Check for: smooth insertion without excessive force, secure seal with no movement after insertion, clean extraction without cork fragmentation.
Include bore diameter in your purchase order specification. If you reorder the same bottle from the same supplier, request confirmation that the bore diameter is within ±0.3mm of the original specification. Mold wear over time can cause bore diameter drift.
The right neck finish follows from two inputs: your intended closure type and your brand tier. The table below maps common spirits brand scenarios to the correct neck finish.
Not necessarily. BVS 30H60 is a specific, standardized thread profile — 30mm diameter with H60 thread geometry. ROPP 30mm is a general description of any roll-on pilfer-proof cap with a 30mm outer diameter, but without implying a standardized thread profile. A bottle described as "ROPP 30mm" by its manufacturer may or may not comply with the BVS 30H60 standard. If supplier interchangeability and standardized cap sourcing are important to you, specify BVS 30H60 explicitly and confirm compliance. For European market bottles, BVS 30H60 is strongly recommended over generic "ROPP 30mm."
What happens if I order the wrong neck finish?
The closure will not fit — or will not seal correctly. A ROPP cap on a Bar Top bottle has no thread to engage. A cork on an ROPP bottle cannot compress into an appropriate seal. The only practical resolution is a new production run of the correct bottle. There is no retrofit solution. This is why neck finish confirmation on physical samples, before committing any production order, is mandatory. For the full quality control framework, see our spirits bottle sourcing guide.
Does the neck finish affect the spirits' TTB or EU label compliance?
The neck finish itself is not regulated by the TTB or EU spirits regulations — it is a technical packaging specification, not a compliance category. However, the closure applied to the bottle must be tamper-evident for certain markets and product categories. Bar Top closures require a heat-shrink band, wax seal, or capsule to achieve tamper evidence; ROPP caps are inherently tamper-evident via the pilfer band. Confirm tamper evidence requirements for your specific product and target market with your regulatory advisor.
Can I use both cork and ROPP closures across different SKUs on the same bottle shape?
Only if the bottle shape has the same neck finish across SKUs — which means either all Bar Top (for cork) or all ROPP (for screw cap). You cannot use a cork on an ROPP bottle or an ROPP cap on a Bar Top bottle. If you want to use cork on premium expressions and ROPP on standard expressions within the same bottle shape, you need two separate molds with different neck finishes — or you accept the same neck finish across all SKUs and differentiate through closure design within that type.
Need to Confirm Neck Finish Before Ordering Closures?
The fastest way to eliminate neck finish risk is to test your closure on a physical bottle before placing bulk orders on either component. HUIHE stocks bottles across Bar Top (multiple bore diameters), BVS 30H60, ROPP 28mm, and ROPP 30mm neck finishes and can ship samples within the week.
Explore our dedicated spirits bottle accessories page, featuring Corks & Stoppers, Caps, Capsules, and Cartons. We also provide dimensional drawings with bore diameter data for all Bar Top bottles — ready to send directly to your cork or stopper supplier for fit confirmation.
