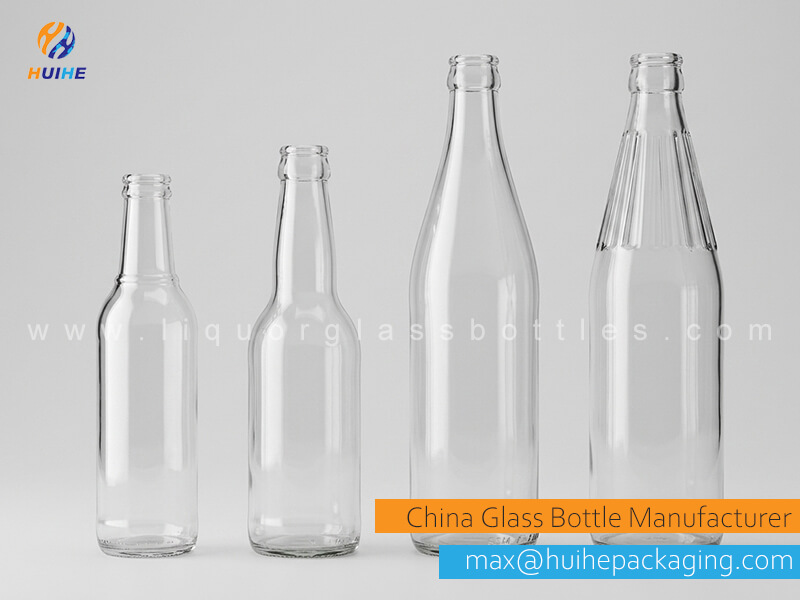

Lightweight Glass Beverage Bottles: Engineering, Weight Reduction & Strength Testing Guide

Glass weight is simultaneously a brand signal and a cost driver. At the premium tier, bottle weight communicates quality — heavier is better. In sustainability reporting, freight planning, and operational efficiency, bottle weight is a target to reduce. Lightweight glass engineering resolves this tension: it delivers measurable reductions in raw material use, production energy, and transport carbon footprint, while maintaining the structural performance — top-load strength, pressure resistance, thermal stability — that commercial beverage production requires.

This guide covers how lightweight glass beverage bottles are engineered, what structural performance must be maintained and tested, what the meaningful weight reduction limits are by bottle format, and how to specify lightweight glass correctly in a B2B procurement context.

Quick Answers

How much can a glass beverage bottle be lightweighted?

Modern lightweight engineering achieves 15–30% weight reduction versus standard designs while maintaining equivalent structural performance. A standard 500ml water bottle at 250g can typically reach 175–210g. Reductions beyond 30% require significant structural trade-offs and are generally limited to specific applications with controlled handling environments.

What tests validate lightweight glass bottle strength?

Primary structural tests: top-load test (vertical compression resistance), internal pressure test (carbonation pressure resistance), thermal shock test (filling and pasteurization temperature resistance), and impact test (horizontal impact during handling). Standards include ISO 7458 (internal pressure), ISO 8113 (vertical load), and ISO 9058 (thermal shock).

Is lightweight glass less sustainable than heavy glass?

No — lightweight glass is more sustainable per bottle. Less glass means less raw material, lower furnace energy per unit, lower transport carbon footprint, and less material in the recycling stream per functional unit. Lightweight glass strengthens the environmental case for glass packaging, particularly in markets with active sustainability procurement requirements. For the full regulatory context, see our European sustainability and packaging regulation guide.

Can lightweight glass be used for sparkling water?

Yes, provided the bottle is engineered with adequate wall thickness in high-pressure zones and passes the relevant internal pressure test. Always confirm the pressure rating against your product's carbonation level. For still water and non-carbonated beverages, lightweight engineering has fewer constraints.

Why Lightweight Glass Matters: Three Converging Drivers

1. Sustainability requirements and ESG reporting

EU packaging regulation — particularly the Packaging and Packaging Waste Regulation (PPWR) — includes targets for packaging material reduction. Retailer sustainability procurement requirements increasingly request documented carbon footprint data per SKU, in which packaging weight is a significant input. Brands reporting under CSRD frameworks need quantifiable, auditable packaging reduction data. Lightweight glass delivers all three: measurable material reduction, documented carbon footprint improvement, and regulatory alignment — in a single specification change.

2. Freight cost reduction

Glass is dense. A 40HQ container of 500ml glass water bottles at standard weight (250g per bottle) carries approximately 12,000–14,000 kg of glass alone. At a lightweight specification (190g per bottle), the same container carries 9,100–10,600 kg of glass — a reduction of approximately 25%. Multiplied across annual shipment volumes, the freight saving is material. For brands with tight margin structures or significant export volumes, lightweight specification is a logistics cost management tool as much as a sustainability measure.

3. Handling efficiency at filling lines

Lighter bottles move faster on conveyor systems with less energy, cause less wear on handling equipment, generate less noise in the filling environment, and reduce the physical strain on line operators handling glass manually. For high-speed filling lines running millions of bottles per year, the operational efficiency gains from lightweight specification accumulate into measurable cost and maintenance savings.

How Lightweight Glass Is Engineered

Lightweight glass bottle engineering is not simply "using less glass." It is the redistribution of glass material within the bottle structure to maintain structural integrity where it is needed while reducing material in zones where it is not load-bearing. The core engineering disciplines involved:

Wall thickness distribution modeling

A standard glass bottle has relatively uniform wall thickness across its body. An engineered lightweight bottle has variable wall thickness — thicker in structural zones (base, shoulder, heel), thinner in the mid-body where the primary structural loads are lower. Finite element analysis (FEA) is used to model stress distribution under each load condition (top-load, internal pressure, impact) and identify zones where wall thickness can be safely reduced without compromising the structural performance envelope.

The result is a bottle that uses less total glass while directing the glass it uses to the locations where structural contribution is highest. This is fundamentally different from simply running a standard mold with less glass — which produces an under-specified bottle with uniformly thin walls and reduced strength in all zones.

Base and heel geometry optimization

The base is the highest-stress zone of a glass bottle. It bears the vertical top-load from pallet stacking, experiences the highest internal pressure in carbonated applications, and takes the primary impact in drop events. Lightweight bottle engineering typically increases base thickness relative to the mid-body — concentrating material where structural demand is highest — while enabling greater wall reduction in the lower stress mid-body zone.

A pushed-up base (punt base) design distributes load more efficiently than a flat base, which is why most lightweight glass bottles use some form of base push-up geometry. The heel radius (the curve between base and body) is also engineered carefully — sharp heel radii create stress concentration points that are the most common origin of breakage in lightweight glass.

IS machine calibration for lightweight production

Glass bottles are formed by IS (Individual Section) machines that gather molten glass, press or blow it into a parison, and blow or press-blow it to final shape. Producing lightweight bottles with consistent wall thickness distribution requires precise IS machine calibration — gob weight, gob temperature, plunger timing, and cooling parameters must all be tuned specifically for the lightweight design.

Not every factory has the calibration capability and process discipline for consistent lightweight production. This is a key supplier qualification factor when specifying lightweight glass — ask about the factory's experience with lightweight designs and request production samples from an actual lightweight run, not just standard bottles.

Glass composition considerations

Standard soda-lime glass composition is adequate for most lightweight applications. Some advanced lightweight designs use glass with modified composition — higher silica content or specific annealing profiles — to achieve higher inherent strength at reduced wall thickness. These modifications are more common in ultra-lightweight designs (below 150g at 500ml) than in the standard lightweight range (175–220g at 500ml).

Achievable Weight Reduction by Format

The following table provides realistic weight reduction reference data for standard still water glass bottle formats. Carbonated bottle weight reduction ranges are more conservative, as pressure resistance requirements constrain how far base and lower body walls can be thinned.

Note: Ultra-lightweight specifications require confirmation of structural test results against your specific product, filling process, and distribution conditions. Do not specify ultra-lightweight without validated test data on production samples.

For weight reference data by size in context of brand tier positioning, see the weight tier section of our glass beverage bottle sizes guide.

Structural Performance: The Key Tests

Lightweight glass bottle specifications must be validated against each of the following structural tests before commercial production is approved. These tests simulate the real-world mechanical stresses the bottle will experience across its lifecycle — from filling and capping through palletized storage and distribution to consumer handling.

Top-load test (vertical load resistance)

The top-load test applies a controlled vertical compression force to the sealed bottle, simulating the load from pallet stacking during warehousing and transport. Glass bottles in a standard 4-high pallet configuration support significant dead weight — a failure at this test means bottles collapse under warehouse storage conditions.

Typical requirements: a 500ml glass water bottle should withstand a minimum top-load force of 300–500 N before failure, depending on the distribution requirements specified. Lightweight bottles typically have lower top-load ratings than standard bottles of equivalent format — confirm the specific rating against your palletization height and warehousing conditions.

Internal pressure test

Relevant for sparkling and carbonated beverages. The test fills the bottle with pressurized water or nitrogen to a defined pressure level and holds it to confirm no failure (burst, crack, or deformation). The test pressure is set above the maximum carbonation pressure the bottle will experience in commercial use, including at elevated temperatures.

Governed by ISO 7458 (glass containers — internal pressure resistance — test method). Standard carbonated beverage applications require bottles rated to a minimum of 1.2–1.5 times the maximum expected fill pressure. Confirm the specific pressure rating against your product's carbonation level and expected storage temperature range.

Thermal shock test

Hot-fill processes, pasteurization, and rapid temperature changes in distribution expose glass bottles to thermal gradients that generate internal stress. The thermal shock test rapidly cycles bottles between specified temperature extremes to confirm the glass does not crack under thermal stress.

Governed by ISO 9058 (glass containers — thermal shock resistance and thermal shock endurance). For hot-fill applications (filling temperatures above 60°C), thermal shock test results are a mandatory specification requirement — not optional.

Impact and drop test

Glass bottles encounter horizontal impacts from conveyor collisions, handling drops, and shelf falls. Impact and drop tests drop bottles or swing weighted pendulums against the bottle body at defined energy levels to confirm resistance to impact failure.

Lightweight bottles have lower impact resistance than equivalent standard bottles at the same format — thinner walls absorb less impact energy. This is the primary structural trade-off at the lightweight end, and the primary reason lightweight glass is less appropriate for outdoor retail, sports venues, and high-drop-risk distribution environments.

Finish (neck) dimensional test

Verifies that the bottle neck and mouth dimensions (bore diameter, thread profile, sealing surface) are within tolerance for correct closure application. Not a structural test in the traditional sense, but critical for lightweight bottles where neck dimensions may be more variable due to reduced glass mass in the finish zone.

Industry Test Standards Reference

When requesting structural test data from a glass bottle supplier, ask specifically for test reports referencing the applicable standard and confirming the test was performed on production samples from the specific mold you are ordering — not on samples from a different mold or a different production run.

What You Give Up: Trade-Offs at the Lightweight End

Lightweight glass delivers genuine performance and sustainability benefits, but it involves real trade-offs that buyers must understand and accept before specifying:

Lightweight Glass and Carbonated Beverages

Lightweight specification for carbonated and sparkling water requires more careful engineering than for still water, because the internal pressure requirement adds a constraint that limits how far base and lower body walls can be thinned.

The key principle: internal pressure in a carbonated glass bottle generates hoop stress in the bottle walls — circumferential tension that is highest at the widest diameter of the body and at the base. These zones cannot be thinned as aggressively as the mid-body of a still water bottle. Lightweight engineering for carbonated glass therefore focuses on the upper body and shoulder zones, where pressure-generated stress is lower.

For a 500ml sparkling water bottle, achievable lightweight reduction is typically 15–20% versus 20–28% for an equivalent still water bottle. Always confirm the internal pressure test result (ISO 7458) for a lightweight carbonated bottle against your specific fill pressure and maximum expected storage temperature before approving production. For closure type selection for carbonated products, see our water bottle closure types guide.

Sustainability Benefits: Quantified

The sustainability benefit of lightweight glass is directly proportional to the weight reduction achieved. The following estimates are based on industry lifecycle assessment data for a 500ml glass water bottle moving from 250g standard to 190g lightweight:

Environmental metrics are proportional estimates based on weight reduction ratio. Actual lifecycle assessment data varies by factory energy mix, recycled cullet content, distribution route, and end-of-life recycling rate. Request an Environmental Product Declaration (EPD) from your supplier for auditable per-bottle carbon data.

For brands reporting under CSRD or responding to retailer sustainability questionnaires, the ability to document a 20–25% reduction in packaging carbon footprint per bottle — through a verifiable, auditable specification change — is a significant commercial asset. Lightweight glass is one of the most cost-effective per-bottle sustainability improvements available in beverage packaging.

When to Specify Lightweight vs. Standard vs. Premium Heavy

How to Specify Lightweight Glass in Your RFQ

Lightweight glass must be specified explicitly — a generic "500ml glass bottle" request will be quoted against standard weight. The following additional parameters should be included in your RFQ when requesting lightweight:

1. Target empty weight range: specify a range in grams (e.g., "target 175–200g empty weight") rather than asking the supplier to propose — anchoring the spec to your target prevents a standard bottle being quoted as "already lightweight"

2. Required structural test results: specify which tests you need results for (top-load, internal pressure if carbonated, thermal shock if hot-fill) and the minimum pass levels required for your application

3. Distribution conditions: specify palletization height, warehousing temperature range, and whether the product is for still or carbonated application — these determine which structural constraints apply

4. Recycled cullet content (if relevant): if your sustainability brief requires documented PCR content alongside lightweight specification, include this as a separate line item — some factories can deliver both, but not all

5. Request test reports from production samples: specify that structural test reports must be from production samples of the specific mold being quoted, not generic factory test data

Frequently Asked Questions

Does lightweight glass break more easily than standard glass?

In high-drop-risk or impact-heavy environments, yes — lightweight glass has lower impact resistance than standard glass. In controlled filling line and palletized distribution environments, the difference in breakage rate is manageable with appropriate packaging design (adequate cell carton protection, correct pallet configuration). Industry data from well-managed lightweight glass programs consistently shows breakage rates within acceptable commercial ranges. The key variable is packaging design and handling protocol — not glass weight alone.

Can I use the same filling line for lightweight and standard glass bottles?

Generally yes, but confirm with your filling line operator. Lightweight bottles have the same neck finish and dimensional profile as standard bottles of the same shape — they are not physically different in ways that affect line compatibility. However, conveyor speed and handling pressure settings may need adjustment for lightweight glass to avoid stress concentration at contact points. Your filling line equipment supplier or co-packer can advise on any required parameter adjustments.

How do I verify that a supplier's lightweight bottle meets the specified weight?

Weigh physical samples on a calibrated scale at goods receipt. Specify in your purchase order both the target weight and the acceptable tolerance range (e.g., "190g ±10g"). Include weight as a parameter in your pre-shipment inspection checklist, verified on a random sample from the production run. Weight outside the specified tolerance is a non-conformance that should be addressed before container release.

Is lightweight glass more expensive than standard glass?

Lightweight glass design requires engineering investment from the factory — FEA modeling, IS machine calibration, and tighter process control. For custom lightweight designs, there may be a modest tooling and development cost. For established lightweight stock molds, the per-bottle cost is typically comparable to or slightly below equivalent standard weight stock bottles, because less raw material is used per bottle. The net economics of lightweight are almost always positive when freight savings are included in the total cost calculation.
